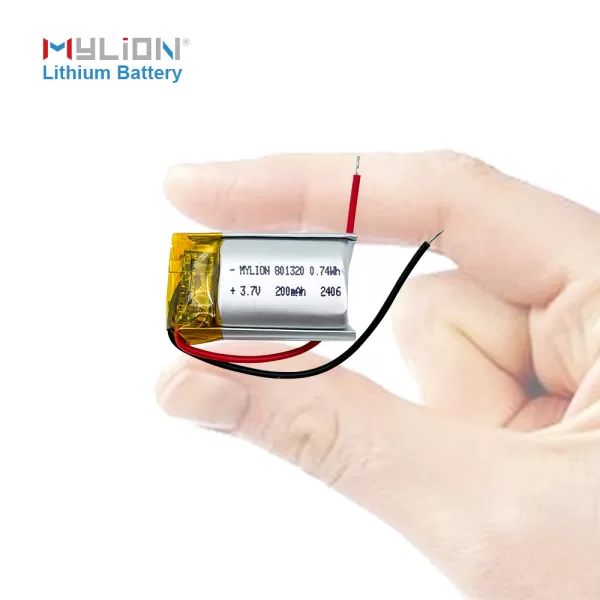

3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design
3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design - Image 2
3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design - Image 3
3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design - Image 4
3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design - Image 5
3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design - Image 6
3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design - Image 7

3.7V 200mAh Lithium Polymer Battery for Consumer Electronics – Slim Design

  • Rated Capacity: 200mAh

  • Nominal Voltage: 3.6V

  • Max Charge Voltage: 4.2V

  • Cut-off Discharge Voltage: 3.0V

  • Charge/Discharge Current: 200mA continuous

  • Output Power: 3.7Wh

Category: Tag:

Description

Product name Lithium polymer battery 3.7V 200mAh 801320
Style name 3.7V 200mAh
Norminal Capacity 200mAh
Nominal Voltage 3.6V
Max charge voltage 4.2V
Cut-off discharge voltage 3.0V
Max continuous discharge current 200mAh
Charge current 200mAh
Output power 0.74Wh
Charge port(IN) 2pin JST or Molex or selected
Discharge port(OUT)
PVC color Silver
Battery dimension L22.8xW12.8xH8.4mm
Weight app.3.4g
Battery cell Brand Chinese Brand cell
Battery protection Over charge&discharge, over current, short circuit
Cycle life standard charge&discharge capacity ≥80% C5mAh ,cycle life ≥600

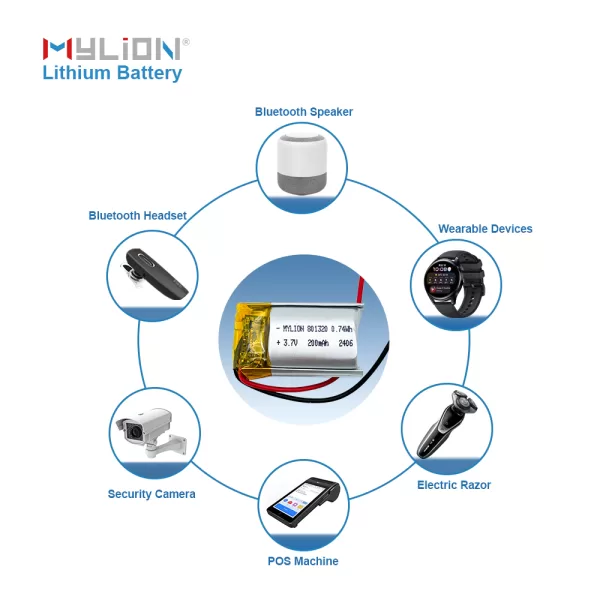

Application bluetooth and consumer electroinics
Package 400pcs in a carton(35x21x30cm), about 9kgs/carton
Warranty 12months
